The E4.1 energy chain is a strong, modular energy chain system, which increases your application's service life whilst reducing costs. It is already reliably used in many applications all around the world, e.g. in storage and retrieval units, crane systems, washing facilities, gantries, shuttles and many more.

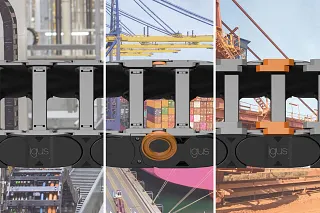

The E4.1 modular system has now been expanded with new rol e-chain links and glide pads. These components
allow for a technologically and economically customised energy supply system for every application from travels of 12m to 500m.
| System E4.1 gliding | E4.1 rolling with rol e-chain links | E4.1 gliding with glide pads | |
|---|---|---|---|
| Max. travel distance | ⬤⬤ | ⬤⬤⬤ | ⬤⬤ |
| Max. travel speed | ⬤⬤ | ⬤⬤⬤ | ⬤⬤ |
| Space required | ⬤ | ⬤⬤ | ⬤ |
| Price index | ⬤ | ⬤⬤⬤ | ⬤⬤ |
| Service life | ⬤ | ⬤⬤⬤⬤ | ⬤⬤ |
| Abrasive environment | ⬤ | ⬤⬤⬤ | ⬤⬤⬤⬤ |
For extremely high speeds
Due to the integrated rollers, push/pull forces on long travels are significantly reduced, and the energy chains used achieve significantly longer service life. The new optimised rol e-chain links now also offer this advantage for the E4.1 modular system.
For extremely abrasive environments
In applications where extremely abrasive environmental conditions lead to excessive wear of the sliding surfaces, the new retrofittable glide pads can increase the service life of the energy supply system.

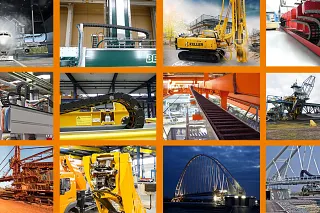

The E4.1 energy chain system is already used successfully in many applications worldwide: silt treatment plant | heavy-duty transport | train washing systems | lifting platforms | gantry loaders | hydroelectric power plants
