Guide troughs for long travels

Guide trough is used in long travels where the e-chain® glides (according to chain type from 5m-12m). They support the smooth low friction operation of the igus energy chains and energy tubes. If the fixed end is installed at the centre of the travel ("centre-fixed"), the energy chains glide on themselves for half the travel. For the other half, we recommend glide bars installed in the trough, on which the e-chains glide. Guide troughs have glide bars made of highly abrasion-resistant plastic (exception RS - glide surface steel).

Alu SuperTroughs

Basic design for general mechanical engineering. Heavy-duty version for plant construction.

Material of the side parts: aluminium

Aluminium SuperTrough - The igus standard for guide troughs

Construction kit system in two versions - basic and heavy duty
Very simple, modular assembly
Glide strips for abrasion protection at high speed
Corrosion-resistant, seawater-resistant aluminium profile
Flexible assembly - fastening on substructure independent of profile lengths and butt joints
Interface connector - plastic with snap-lock mechanism
Polymer glide bar made of high-molecular-weight PE
Bottom clamp attached either inwards or outwards - directly on the surface or on the C-profile
Conductivity according to DIN EN 61537 - standard
Glide strips and a rubber profile that can be inserted for minimising operation noise
Bottom clamp for a secure hold even in demanding applications
Fixed-end module allows for fast and easy fastening of the e-chain fixed end to the super aluminium trough without drilling

Super aluminium trough installation instructions

970.30.SL / 970.31.SL

Outer height of trough side part: 77mm
For series: E2 - 10 & B15/Zipper - 15 & R15

Guide troughs PDF file

970.30.SL / 970.32.SL

Outer height of trough side part: 77mm
For series: 1500/E4.21

Guide troughs PDF file

971.30.SL / 971.31.SL

Outer height of trough side part: 87mm
For series: E2.26/2500/255/R48/E6.29/R6.29/EF61.29/E61.29

Guide troughs PDF file

972.02.30.SL / 972.02.31.SL

Outer height of trough side part: 87mm
For series: E4.31L/R4.31L/E4.28/R4.28/
E61.35/E6.35

Guide troughs PDF file

972.30.SL / 972.31.SL

Outer height of trough side section: 117 mm
For series: E4.38L / R4.38L / E4.32 / H4.32 / R4.32 / E61.40 / E6.40 / R6.40 / E4Q.34 / H4Q.34

Guide troughs PDF file

972.30.SL / 972.32.SL

Outer height of trough side part: 117mm
For series: E2.38/2700/R58

Guide troughs PDF file

973.30.SL / 973.31.SL

Outer height of trough side section: 144 mm
For series: E2.48 / 3500 / R68 / E4.48L / R4.48L / E4.42 / H4.42 / R4.42 / E61.52 / E6.52 / R6.52 / E4Q.44 / H4Q.44

Guide troughs PDF file

974.30.SL / 974.31.SL

Outer height of trough side section: 184 mm
For series: E4.64L / E4.56 / H4.56 / R4.56 / 14040 / 14140 / R18840 / 14240 / 14340 / E61.62 / E6.62 / E4Q.58 / H4Q.58

Guide troughs PDF file

974.30.SL.HD/974.31.SL.HD

"Heavy-Duty" version
Outer height of trough side part: 184mm
For series: E4.56/H4.56/R4.56/14040/14140/18840/
14240/14340/E61.62/E6.62

Guide troughs PDF file

975.30.SL / 975.31.SL

Outer height of trough side section: 184 mm
For series: E4.80 / H4.80 / R4.80 / 15050 / 15150 / R19850 / 15250 / 15350 / E61.80 / E6.80 / E4Q.82 / H4Q.82

Guide troughs PDF file

975.30.SL.HD/975.31.SL.HD

"Heavy-Duty" version
Outer height of trough side part: 184mm
For series: E4.80/H4.80/R4.80/15050/15150/19850/15250/15350/E61.80/E6.80

Guide troughs PDF file

Fixed end module/terminal

Fixed end module for the Alu SuperTrough
Quick fastening
Drilling not necessary

Fixed end module overview

Installation of the plastic fixed point modules in the Alu SuperTrough

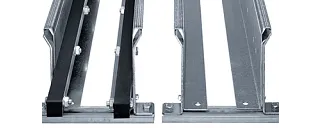

Steel guide trough

For very robust plant construction

Material of the side parts: Galvanized steel / stainless steel on request

Steel guide trough

Special feature: Guide troughs made of steel - very stable and rugged for heavy machinery

very strong and tough guide trough made of steel
Easy assembly due to installation set for joint and attachment surface connection
Easy mounting directly to the base of the C-profile
Large range, two piece design, adjustable to e-chain® width
Available in galvanised steel and stainless steel (Materials: 1.4301, 14404, 14571)
Plastic glide bar made of PE
Side sections are installed with the appropriate clearance and attached to the underlying surface
Fixed end module option available, for fast and easy mounting - without any drilling
Conductivity according to DIN EN 61537 - standard

Installation video for steel guide troughs

90.30 / 90.31

Outer height of trough side part: 480mm
For series: 800/840

Guide troughs PDF file

92.30 / 92.31

Outer height of trough side part: 70mm
For series: E2.26/2500/255/E6.29/R6.29/
EF61.29/E61.29

Guide troughs PDF file

93.30 / 93.31

Outer height of trough side section: 130 mm
For series: E2.48 / 3500 / R68 / E4.42 / R4.42 / R4.48L / E6.52 / R6.52 / E61.52 / E4Q.44 / H4Q.44

Guide troughs PDF file

94.30 / 94.31

Outer height of trough side section: 170 mm
For series: E4.56 / H4.56 / R4.56 / 14040 /14140 /
R18840 / 14240 / 14340 / E6.62 / E4.64L / E4Q.58 / H4Q.58

Guide troughs PDF file

95.30 / 95.31

Outer height of trough side part: 100mm
For series: E2.38/2700

Guide troughs PDF file

96.30 / 96.31

Outer height of trough side section: 220 mm
For series: E4.80 / H4.80 / R4.80 / 15050 / 15150 / R19850 / E6.80 / E61.80 / E4Q.82 / H4Q.82

Guide troughs PDF file

97.30 / 97.31

Outer height of trough side section: 130 mm
For series: E4.32 / H4.32 / R4.32 / E4.38L / R4.38L / E6.40 / R6.40 / E61.40 / E4Q.34 / H4Q.34

Guide troughs PDF file

98.30 / 98.31

Outer height of trough side part: 300mm
For series: E4.112/4.112/1640/R1608

Guide troughs PDF file

99.30 / 99.31

Outer height of trough side part: 130mm
For series: E4.28/R4.28/E4.31L/R4.31L/E6.35/E61.35

Guide troughs PDF file

91.10 - 91.71

Outer height of trough side part: 48mm
For series: E2 mini - 10 & B15/Zipper - 15 & R15

Guide troughs PDF file

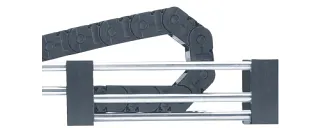

Tubular trough RS system

Lets light and dirt through

The igus tubular troughs are simple and reasonable options to safely guide e-chains®. Recommended for less demanding applications and applications with travel speeds less than 2m/s, as well as travel distances less than 50m.

For application areas where dirt or chips occur - the waste simply falls through the spaces
No difficult setting of the correct width - the fitting spacers are delivered with the complete order
The tubes are available in galvanised steel or polymer

Tubular trough system RS

92.70 / 92.71

Outer height of trough side part: 90mm
Series: E2.26/2500/255

Guide troughs PDF file

93.70 / 93.71

Outer height of trough side part: 146mm
For series: E2.48/3500

Guide troughs PDF file

95.70 / 95.71

Outer height of trough side part: 126.3mm
For series: E2.38/2700

Guide troughs PDF file

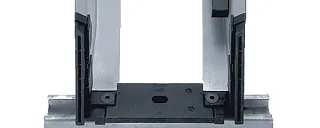

Snap-in troughs system

Very simple and cost-effective

The igus snap-in trough is an easy to install, space-saving, cost-effective trough system for applications up to 50m long.

Smaller than conventional troughs
Quick and easy assembly
Fixed inner width due to spacer
No complex width setting required
No sharp metal edges internally with covered connectors
Slim trough parts made of galvanised steel (stainless steel upon request)

Snap-in troughs system

91.930 / 91.931

Outer height of trough side part: 55.5mm
For series: Zipper - 15 & R15/E2 mini - 10 & B15

Guide troughs PDF file

92.930 / 92.931

Outer height of trough side part: 76.6mm
For series: E2.26/2500/255

Guide troughs PDF file

93.930 / 93.931

Outer height of trough side part: 138.6mm
For series: E2.48/3500

Guide troughs PDF file

95.930 / 95.931

Outer height of trough side part: 106.6mm
For series: E2.38/2700

Guide troughs PDF file
