Tech up & cost down
motion plastics for
fluid technology

Maintenance-free and lubrication-free plastic plain bearings for fluid technology

Hydraulic and pneumatic components give machinery and equipment power, precision, speed and dynamics. Demands on the equipment and corresponding components installed are incredibly high! The range of uses for iglidur plain bearings, igubal spherical bearings and drylin linear guides or lead screws in fluid engineering is constantly increasing. They are also proving their worth in fittings and valves. From linear movements through to rotating applications, they provide high wear abrasion plus chemical and temperature resistance as well as freedom from maintenance in dry operations.

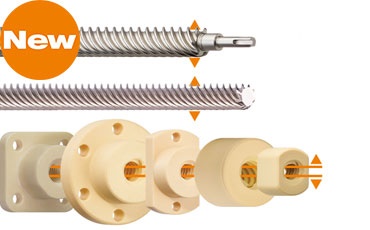

New from April 2020

dryspin lead screw technology with new pitches
Lead screw technology with new pitches

▲ Tech up

Up to 2.5 times greater efficiency due to optimum thread angle

▼ Cost down

Up to 30% longer service life thanks to thread symmetry

Cost-effective alternative to ball screws


More information about the new dryspin sizes

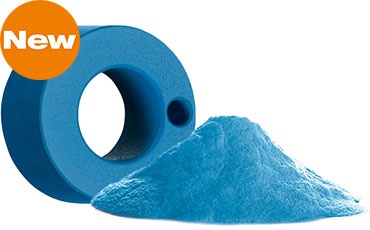

Coating material iglidur IC-05
High-performance polymers for spraying on

▲ Tech up

Wear-resistant

FDA and EU10/2011-compliant

▼ Cost down

Simple coating and protection of metallic surfaces in particularly small installation spaces



More information about iglidur IC-05

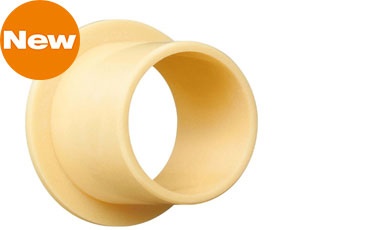

iglidur E plain bearing
Long-lasting on aluminium shafts

▲ Tech up

Extremely wear-resistant material for continuous operation

Very low coefficient of friction

▼ Cost down

Cost-effective and maintenance-free

Higher running performance than iglidur J



More information about iglidur E plain bearings

igus® high-performance polymers in use at our customers

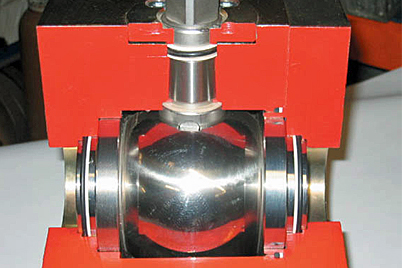

Resistant to chemicals and available in small quantities

iglidur X plain bearings can be found in virtually all flange ball valves and flanged ball compact valves made by Pister Kugelhähne GmbH. The decisive factors for the choice of plain bearings made of high-performance polymers were their chemical resistance and availability in small quantities. The iglidur X material can be deployed at temperatures between -100°C and 315°C.

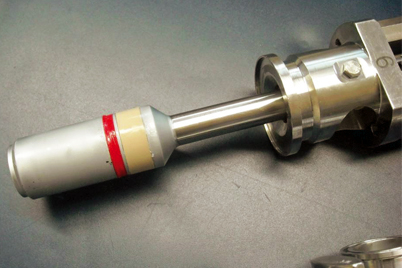

Valve without jamming piston

This valve with iglidur plain bearings is deployed in a machine that fills packages of ice cream with fruit pieces. It is vital for the fully automated process to function reliably. Since iglidur plain bearings have been deployed as support and guide rings, there have been no more jammed pistons. In addition, plain bearings are suitable for use in the food industry.

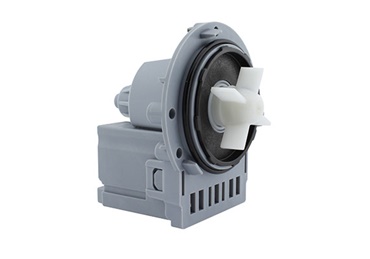

iglidur in wastewater pumps for washing machines

The advantages of iglidur RN37, cost efficiency, freedom from lubrication, low wear and durability are successfully used in the wastewater pumps for washing machines by a well-known manufacturer.

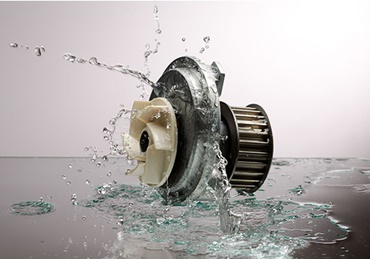

iglidur in coolant pumps for cars

Requirements:

  • 6,500 revolutions per minute with hydrodynamic lubrication
  • Mixed friction during starting/stopping
  • short-term speed of up to 2m/s during dry operation
  • Max. 130°C up to 150°C
Advantages of iglidur: cost-efficient, long service life, light

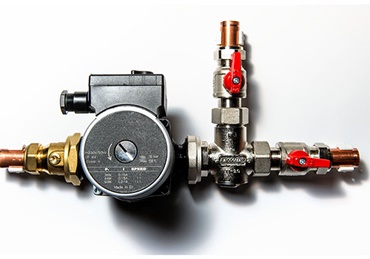

iglidur in circulating pumps

Quiet operation, freedom from lubrication and cost efficiency are three advantages of iglidur plain bearings in circulating pumps for heaters.

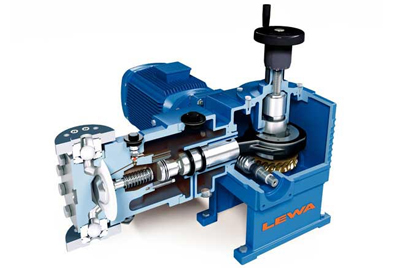

Wear in dosing pumps kept to a minimum

LEWA uses igus plain bearings made of iglidur X material for its Ecoflow dosing pump. These are installed in the pump's engine where their properties ensure that wear to the piston rod bolt is kept to a minimum.

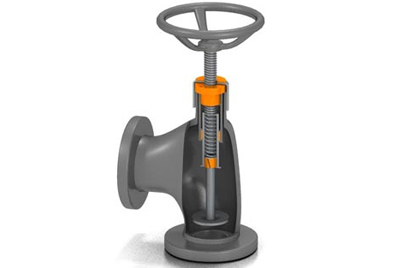

Reduce maintenance costs with iglidur plain bearings

iglidur plain bearings contain solid lubricants, which make them self-lubricating and maintenance-free. This reduces maintenance costs and ensures that stop valves, for example, function reliably over their long service life. The application uses a dryspin trapezoidal lead screw and ‑lead screw nut for the valve actuator, iglidur plain bearings for the dosing valve and an iglidur piston ring on the piston rod.

igus® polymer products for fluid technology

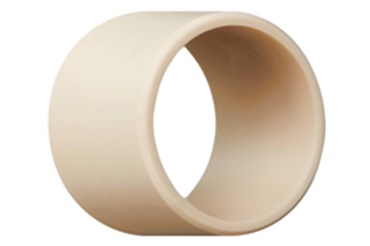

iglidur L250 plain bearings
iglidur plain bearings

  • No lubrication necessary
  • Low maintenance
  • Long service life
  • Cost-effective
  • Available in various materials and shapes

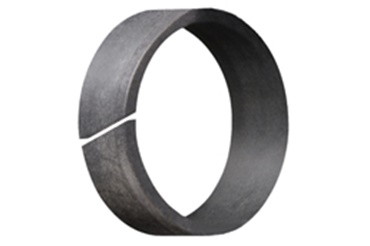

iglidur H370 piston ring
iglidur piston rings

  • No lubrication necessary
  • Low maintenance
  • More wear-resistant than PTFE strips
  • Minimal installation work required
  • Available in various materials

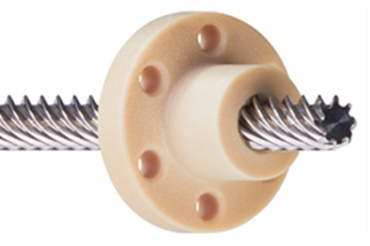

dryspin high helix lead screw
Lead screw dryspin

  • With metric thread, high helix or trapezoidal thread
  • With reverse thread, left or right hand thread
  • Run quietly and without lubrication
  • High media resistance
  • Available in various materials

Checked in the igus® test laboratory for use in the real world



Glance into the dry-tech test laboratory In the industry's largest test laboratory, iglidur plain bearings, igubal spherical bearings and drylin linear guides as well as lead screws are put to the acid test. The test results are included in the service life calculator, enabling an accurate prediction.Extensive tests in the medium Elaborate wear data from more than 15,000 tests performed each year under the most varied conditions in the 3,800sqm igus test laboratory make it easy to find the ideal material for every field of application. Included are wear tests with iglidur materials performed under water.
Find out more about the igus test laboratory

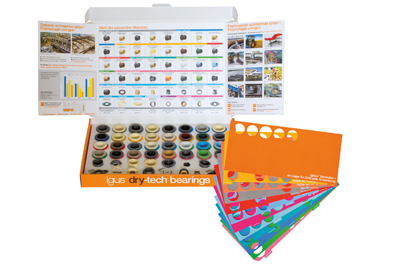

iglidur improves sample box

For you, the sample box is free of charge!

All about fluid technology

See for yourself the quality of our products. The iglidur improves sample box contains:

  • 39 iglidur plain bearings of the most important iglidur materials
  • Templates for finding the perfect material for your application
  • iglidur bearing technology catalogue with information about our plain bearings


Order free sample box now!
