Bus cables

The chainflex® bus cables are available for all well-known industrial bus systems such as Profibus, Interbus, Profinet, Ethernet, CAN-Bus, DeviceNet, ASi or CC link. Depending on the cable family, they can be used for torsion, for severe climatic conditions, for narrow radii, or particularly long travel distances, at high speeds and accelerations. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.
  • Bending radii up to 7,5xd
  • Jacket materials: PVC, iguPUR, PUR or TPE
more
less
36 month guarantee
36 month guarantee

You can expect that from us.

Products

Categories

Control cables
Data cables
Motor cables
Bus cables
Measuring system cables
Servo cables
Coaxial cables
Fibre Optic Cables (FOC)
Special cables
Robot cables

Filter

Core Requirements
Show details
Cable structure
Material
Requirements
List
Tile

Number of products: 11

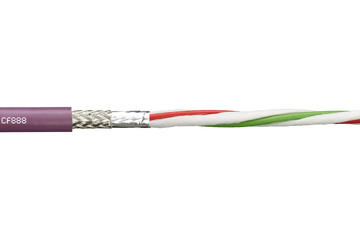

chainflex® bus cable CF888
chainflex® bus cable CF888
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 1589 and 2560, 30 V, 60 °C UL/CSA<br>CF888.001: Style 1589 and 2560, 30 V, 60 °C<br />CF888.021-CF888.060: Style 1598 and 2571, 30 V, 80 °C UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 CTP<br>Certified to no. C-DE. PB49.B.00449 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Oil resistance: No oil resistance
  • Flame retardant
  • chainflex® class: 3.1.1.1

Upon request

1 of 4 articles ready for shipping in 24 h
To the product page
chainflex® bus cable CFBUS.PVC
chainflex® bus cable CFBUS.PVC
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 1598 and 2571, 30 V, 80 °C UL/CSA<br>Style 1598 and 2571, 30 V, 80 °C UL listed<br>CMX, 75°C NFPA<br>Following NFPA 79-2012 chapter 12.9 UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF240.02.24, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Flame retardant
  • UV-resistant
  • chainflex® class: 4.3.2.1

from 1.59 USD / ft

2 of 13 articles ready for shipping in 24 h
To the product page

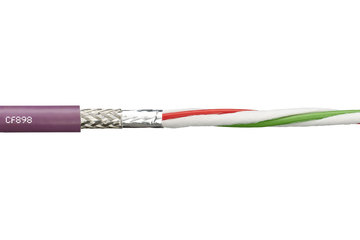

chainflex® bus cable CF898
chainflex® bus cable CF898
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10493 and 20549, 300 V, 80 °C UL/CSA<br>CF898.001-CF898.060: Style 1598 and 20236, 80 V, 80 °C<br />CF898.080-CF898.081: Style 10493 and 20549, 300 V, 80 °C<br />CF898.082-CF898.083: Style 21866, 90 V, 80 °C UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01559 CTP<br>Certified to no. C-DE. PB49.B.00449 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • UV-resistant
  • chainflex® class: 3.1.3.1

from 1.65 USD / ft

6 of 8 articles ready for shipping in 3 - 4 weeks
To the product page

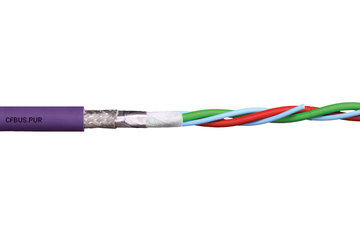

chainflex® bus cable CFBUS.PUR
chainflex® bus cable CFBUS.PUR
UV resistance<br>Medium Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL/CSA<br>Style 1598 and 20236, 30 V, 80 °C UL/CSA<br>Style 1598 and 20236, 30 V, 80 °C<br />CFBUS.PUR.H01.049: Style 10493 (1,5 mm²), 11602 (0,15 mm²) and 20233,&nbsp;300 V, 80 °C<br />CFBUS.PUR.H01.060: Style 10493 (1,5 mm²), 11602 (0,38 mm²) and 20233,&nbsp;300 V, 80 °C UL listed<br>CMX, 75°C UL listed – filter NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • PVC-free
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • Halogen-free
  • chainflex® class: 4.3.3.1

from 2.12 USD / ft

2 of 15 articles ready for shipping in 24 h
To the product page

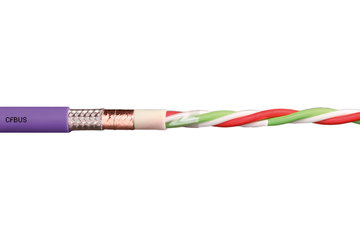

chainflex® bus cable CFBUS
chainflex® bus cable CFBUS
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 1589 and 21371, 30 V, 80 °C UL/CSA<br>CFBUS.001-.035 and CFBUS.055: Style 1589 and 21371, 30 V, 80 °C<br />CFBUS.040-.052 and CFBUS.060: Style 10138 and 21235, 300 V, 80 °C UL listed – filter NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Flame retardant
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • chainflex® class: 6.6.4.1

from 2.37 USD / ft

1 of 21 articles ready for shipping in 24 h
To the product page

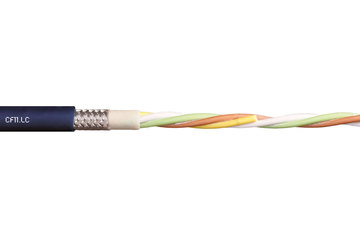

chainflex® bus cable CF11.LC
chainflex® bus cable CF11.LC
UV resistance<br>High Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • PVC-free
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • Halogen-free
  • chainflex® class: 6.6.4.1

from 5.80 USD / ft

1 of 1 articles ready for shipping in 3 - 4 weeks
To the product page

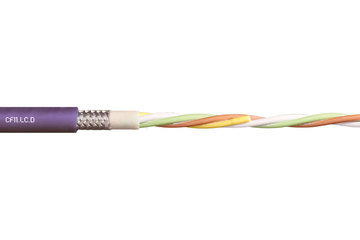

chainflex® bus cable CF11.LC.D
chainflex® bus cable CF11.LC.D
UV resistance<br>Medium Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • UV-resistant
  • Halogen-free
  • chainflex® class: 6.6.4.1

Upon request

2 of 2 articles ready for shipping in 3 - 4 weeks
To the product page

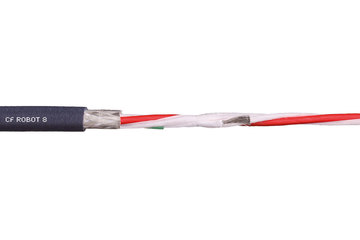

chainflex® bus cable CFROBOT8
chainflex® bus cable CFROBOT8
UV resistance<br>High Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 1589 and 20963, 30 V, 80 °C UL/CSA<br>Style 1589 and 20236, 30 V, 80 °C<br />CFROBOT8.045-CFROBOT8.049: Style 1589 and 20236, 300 V, 80 °C<br />&nbsp; UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • chainflex® class: 6.1.3.3

from 9.47 USD / ft

7 of 8 articles ready for shipping in 3 - 4 weeks
To the product page

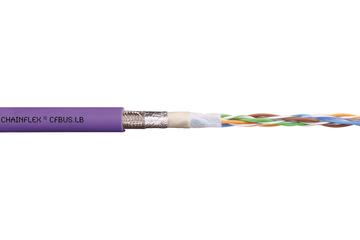

chainflex® bus cable CFBUS.LB
chainflex® bus cable CFBUS.LB
UV resistance<br>Medium Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • PVC-free
  • UV-resistant
  • Halogen-free
  • chainflex® class: 7.6.4.1

Upon request

9 of 9 articles ready for shipping in 3 - 4 weeks
To the product page
chainflex® bus cable CFSPECIAL.484
chainflex® bus cable CFSPECIAL.484
UV resistance<br>High Flame retardant<br>Flame-retardant (following DIN EN 60332-1-2, DIN EN 45545-2) Fire safety class: 3 (in accordance to EN 45545-2) or 4 (in accordance to DIN 5510-2) Halogen-free<br>Following EN 60754 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU Smoke gas density<br>Low smoke gas density according to EN 61034-2 Toxicity<br>Low toxicity according to EN 50305-9.2
  • Requirements: For heaviest duty applications in rail vehicles
  • Outer jacket: Special mixture
  • Overall shield
  • Oil resistance: Oil-resistant according to DIN EN 60811-2-1
  • Flame retardant
  • Smoke gas density: Low smoke gas density according to EN 61034-2
  • Toxicity: Low toxicity according to EN 50305-9.2
  • Self-extinguishing

Upon request

1 of 1 articles ready for shipping in 3 - 4 weeks
To the product page

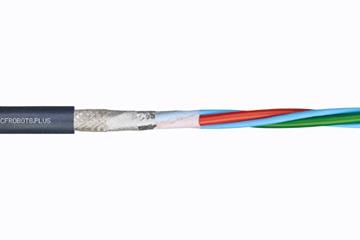

chainflex® bus cable CFROBOT8.PLUS
chainflex® bus cable CFROBOT8.PLUS
UV resistance<br>High Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 1589 and 20236, 30 V, 80 °C UL/CSA<br>Style 1589 and 20236, 30 V, 80 °C UL listed – filter EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Flame retardant
  • Hydrolysis and microbe-resistant
  • UV-resistant
  • chainflex® class: 6.1.3.4

Upon request

To the product page
