Small energy chains for small installation spaces

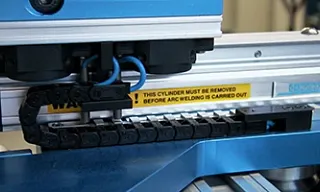

e-chain

It is not uncommon for the installation space to be the limiting factor when selecting cables and chains. This is where small energy chains are needed that work without any problems even in tight installation spaces. Our mini-energy chains developed for this purpose are designed so that they can be used in small installation spaces without any problems. The new generation of our E2.1 micro impresses with its lightweight and compact design. It also scores highly in terms of lightness, stability and ease of opening.

Typical industries and applications: General mechanical engineering, measuring machines, handling systems...

On this page you will find information about:

E2.1 micro

E2.1 micro
E2.1 micro

More stable generation for the smallest installation spaces

  • Inner heights: 10 to 15mm
  • Available in three versions:
    • closed
    • openable from both sides in the inner radius
    • openable from both sides in the outer radius
  • Integrated brake for particularly smooth, quiet operation
  • 25% higher unsupported length and 100% higher additional load compared to identical designs
  • Optional opening tool for even faster opening and closing

E2 micro

E2 micro
E2 micro

For extremely small installation spaces with minimal inner heights

  • Inner heights: 5 to 15.6mm
  • Available in three versions:
    • closed
    • openable in the outer radius
    • openable in the inner radius with film hinge

easy chain

easy chain
easy chain

Very easy to fill and cost-effective

  • Inner heights: 5 to 48.5mm
  • Available in two versions:
    • filling in the outer radius
    • filling in the inner radius
  • Simply press cables in and pull them out
  • Also available with multi-chamber system
  • UL94-V2 classification

E2 mini

E2 mini
E2 mini

Small and very strong

  • Inner heights: 17 to 41mm
  • Available in three versions:
    • closed
    • openable in the inner radius
    • openable in the outer radius

zipper

Zipper
Zipper

Lightning-fast opening and closing with "zip fastener"

  • Inner heights: 9 to 32mm
  • Crossbars on a strip on the outer radius
  • Quiet operation due to small pitch of the chain links
  • Also available as a closed "tube version"
  • iF Design Award for zip design

Cables for small installation spaces in energy chains

CFSPECIAL.532

Control cable

  • CF130.UL/CF140.UL
  • PVC outer jacket
  • Bend factor of up to 7.5xd
  • For applications in vending machines, wood and stone processing
To the control cables
CFSPECIAL.572

Data cable

  • CF211/CF211.PUR
  • PVC/PUR outer jacket
  • Bend factor of up to 7.5xd
  • For applications in vending machines, machine tools or packaging systems
To the data cables

Bus cable

  • CFBUS.PUR
  • PUR outer jacket
  • Bend factor of up to 12.5xd
  • For applications in vending machines, processing systems and machine tools
To the bus cable
CFSPECIAL.562

High-end control cable

  • CF98.PLUS/CF99.PLUS
  • TPE outer jacket
  • Bend factor of up to 3xd
  • For applications in automatic doors and pick & place machines
To the control cables

High-end measuring system cable

  • CF11.D
  • TPE outer jacket
  • Bend factor of up to 6.8xd
  • For applications in machine tools and processing machines
To the measuring system cable

High-end motor cable

  • CF37.D/CF38
  • TPE outer jacket
  • Bend factor of up to 7.5xd
  • For low-temperature applications, fast handling and storage and retrieval machines
To the motor cables

High-end servo cable

  • CF29.D
  • TPE outer jacket
  • Bend factor of up to 6.8xd
  • For low-temperature applications, in storage and retrieval as well as processing machines
To the servo cable

High-end bus cable

  • CFBUS.LB
  • TPE outer jacket
  • Bend factor of up to 7.5xd
  • For applications in vending machines, fast handling and semiconductor assembly
To the bus cable

Energy chain recycling

chainge
chainge

Chainge recycling programme for energy chain
Make your contribution to reducing plastic waste and improving recycling in the industry.
