Extension of the product range
New dryspin® Dimensions DS3.5x1-RH, DS20x5-LH and DS20x10-LH

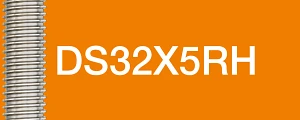

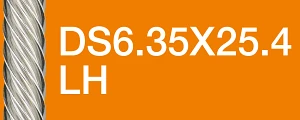

Our new DS32x5 is used in particular in our new linear axis type SLR. DS6.35x25.4 extends the range of high helix lead screws with left-hand thread.
- Quiet running thanks to rounded tooth geometry and longer service life due to asymmetry
- Up to 30% longer service life due to thread asymmetry
- Ongoing test series in the internal test laboratory
- Lubrication-free operation and easy cleaning thanks to corrosion-resistant AISI 304 stainless steel
- Free online tool for spindle machining without prior CAD knowledge, incl. 2D dimensioned drawing and live price
Saving with sliding threads: Technical data and product range [mm]
All dryspin® threaded spindles can also be customised. Please configure them online or send us your drawing. We will provide you with a quotation at short notice.
| Part No. | Thread | d1 -0,1 [mm] | d3 -0,1 [mm] | P | L max. | Weight [kg] | Number of gears | Pitch angle [°] |
|---|---|---|---|---|---|---|---|---|
| DST-LS-32X5-R-ES | DS32X5 | 32 | 27.6 | 5 | 3,000 | 5.40 | 1 | 2.85 |
| DST-LS-6.35X25.4-L-ES | DS6.35x25.4 | 6.35 | 4.1 | 25.4 | 1,000 | 0.17 | 8 | 51.85 |
The new dimensions of the dryspin® threaded spindles at a glance
Further important information:
Try dryspin technology for yourself
With the help of the free thread sample
It is important to hold a real sample in your hands to get a comprehensive impression. We will be happy to send you a sample of our dryspin® lead screws.
We have summarised all the specifications and advantages of dryspin® lead screw technology on the sample for you. See for yourself and if you have any questions, our experts will be happy to help you.
