drylin® telescopic rails

drylin® NT telescopic rails

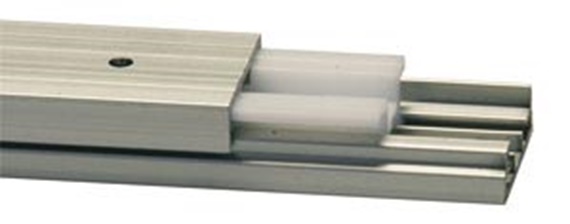

Completely lubrication-free linear extendables in stroke lengths from 100mm to 600mm. The telescopic rails consists of anodised aluminium guide rails and a sliding block of the tried-and-tested iglidur® material. iglidur tribopolymers enable a dry operation in every application due to their compounded solid lubricants. One benefit of the telescopic rails - in addition to being maintenance-free - is that they can be safely used in clean hygienic environments. No oil or grease can be transferred to other products, clothing or persons. Even applications in cleanroom sluices have already been implemented with the help of telescopic rails. But the dry run also has its advantages in dirty environments. Dirt particles do not get stuck in the guide and are not compacted into a sticky mass. Optionally, all telescopic rails can be delivered with a grid in the start-middle-end position. Requirements by individually positioned indexing positions can be met with telescopic rails.

Features

Robust plastic/aluminium version

Lightweight

Cost-effective

Corrosion-free

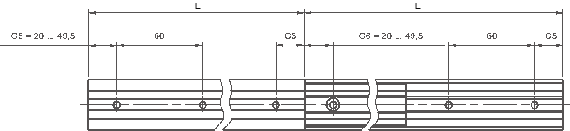

Total extension NT-35-"L"

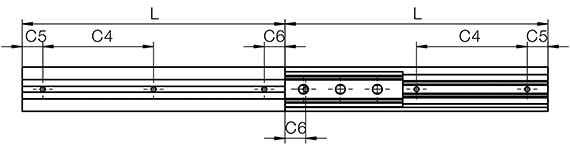

Total extension NT-60-"L"

Over-extension NT-35-"L"-"L+20"

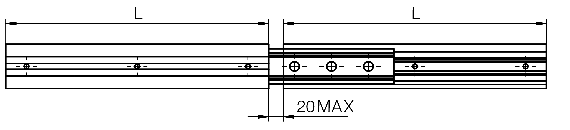

Over-extension NT-60-"L"-"Lmax.+20"

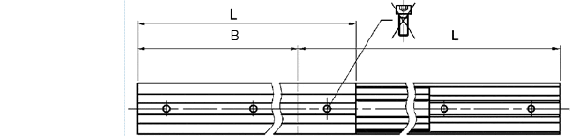

Partial extension NT-35-"L"-"B"

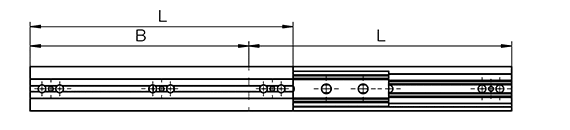

Partial extension NT-60-"L"-"B"

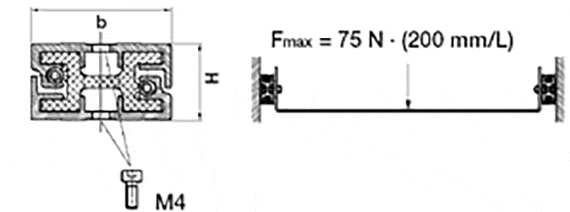

Recommendation: The calculated Fmax facilitates an easy manual operation. Higher loads can be carried by the system, but then a higher driving power is required.

Product range

Dimensions [mm]

part number	b	H	L. min.	L. max.
NT-35-150	35	19	150	150	3,707.11 INR
NT-35-200	35	19	200	200	3,995.92 INR
NT-35-300	35	19	300	300	4,575.16 INR
NT-60-200	60	24	200	200	9,098.37 INR
NT-60-300	60	24	300	300	10,823.17 INR
NT-60-400	60	24	400	400	12,547.97 INR
NT-60-AR-200	60	24	200	200	9,790.54 INR
NT-60-AR-300	60	24	300	300	11,859.02 INR
NT-60-AR-400	60	24	400	400	13,927.49 INR
NT-35-AR-150					3,881.21 INR
NT-35-AR-200					4,229.07 INR
NT-35-AR-300					4,925.12 INR
NT-60-600					15,995.97 INR
NT-60-890					20,996.12 INR
NT-60-AR-600					18,066.04 INR
NT-60-AR-890					24,066.54 INR
NT-35-P-HD					Upon request
NT-35-P					Upon request
NT-35-P-AR					Upon request
NTKA-35					322.69 INR
NTKA-60					839.01 INR
NTKB-35					403.37 INR
NTKB-60					1,032.62 INR
NT-35-4					Upon request
NT-35-4-AR					Upon request
NT-60-4-200					Upon request
NT-60-4-300					Upon request
NT-60-4-400					Upon request
NT-60-4-600					Upon request
NT-60-4-890					Upon request
NT-60-4-200-AR					Upon request
NT-60-4-300-AR					Upon request
NT-60-4-400-AR					Upon request
NT-60-4-600-AR					Upon request
NT-60-4-890-AR					Upon request
NT-35-HT-150					Upon request
NT-35-HT-200					Upon request
NT-35-HT-300					Upon request
