Rotary movements in a very small space - 20 times round its own axis. With the very compact igus twisterband, rotations can be achieved cost-effectively with low wear and very little maintenance, even in confined spaces, whereby energy, data and media can still be supplied reliably.
TB12: XX ≈ Angle of rotation/360 + 2
| Angle of rotation [°] | Inner width [mm] | Inner height [mm] | X1 inner machine installation space | X2 outer machine installation space | R min. [mm] | R max. [mm] | Cable diameter d1 max. [mm] | Opening system |
|---|---|---|---|---|---|---|---|---|
| 360 - 7200 | 23 | 9 | 40 | 140 | 24 | 35 | 7 | "easy" design |
Rotation angle [°]: |
|
| Angle of rotation [°] | Inner width [mm] | Inner height [mm] | X1 inner machine installation space | X2 outer machine installation space | R min. [mm] | R max. [mm] | Cable diameter d1 max. [mm] | Opening system |
|---|---|---|---|---|---|---|---|---|
| 340 - 7140 | 44 | 12 | 50 | 220 | 34 | 57 | 9 | "easy" design |
Rotation angle [°]: |
|
| Angle of rotation [°] | Inner width [mm] | Inner height [mm] | X1 inner machine installation space | X2 outer machine installation space | R min. [mm] | R max. [mm] | Cable diameter d1 max. [mm] | Opening system |
|---|---|---|---|---|---|---|---|---|
| 340 - 7140 | 44 | 18 | 50 | 220 | 34 | 57 | 14 | lock |
Rotation angle [°]: |
|
| Angle of rotation [°] | Inner width [mm] | Inner height [mm] | X1 inner machine installation space | X2 outer machine installation space | R min. [mm] | R max. [mm] | Cable diameter d1 max. [mm] | Opening system |
|---|---|---|---|---|---|---|---|---|
| 340 - 680 | 27 | 22 | 200 | 320 | 69 | 82 | 17 | lock |
Rotation angle [°]: |
|
| Angle of rotation [°] | Inner width [mm] | Inner height [mm] | X1 inner machine installation space | X2 outer machine installation space | R min. [mm] | R max. [mm] | Cable diameter d1 max. [mm] | Opening system |
|---|---|---|---|---|---|---|---|---|
| 180 - 3420 | 75 | 22 | 90 | 330 | 44 | 77 | 17 | lock |
Rotation angle [°]: |
|
You can find the installation instructions for twisterband here.
twisterband in very diverse areas of industry
Take a look in our test laboratory for energy chains.
Film hinge: easy access and fast filling with cables and hoses (TB20.44.18, TB30)
As a rule of thumb, the maximum rotation angle is: for each 180° hinge = 360° more rotation
A central shaft must be installed for horizontal orientation angles of rotation above 1500°

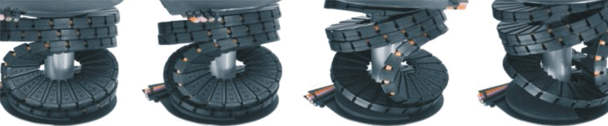

igus twisterband: extremely small installation spaces, fits very closely around the rotary axis
Compact, modular and cost-effective - Horizontal: 7,000°* and more feasible, vertical up to 3,000° rotary movement in the smallest of spaces
Can be used in different installation positions: here, horizontal 7,000°* and more rotary movement in extremely small space. Limited length compensation possible
*Rotary movements up to 3,600° can be ordered from stock. From 3,600°, please contact your igus representative.
