Buy energy chains for rotary movements

List
Tile

Number of products: 15

Rotary modules – for circular movements
Rotary modules – for circular movements
The igus® modular system for fast rotary applications. Integrated strain relief and cable guides within the guide trough. Maximum angle of rotation 600°.
Upon request
To the product page

twisterchain® Series TC32, energy chain, openable along the inner radius
twisterchain® Series TC32, energy chain, openable along the inner radius
  • Inner height hi: 32mm
  • Inner width Bi: 87,5 - 150mm
  • Bend radii R: 100 - 250mm
  • Pitch: 56mm
from 64.58 INR/m
59 items, thereof ready for shipping:
1 in 24 hours
23 in 2 weeks
To the product page

twisterchain® Series TC42, energy chain, openable along the inner radius
twisterchain® Series TC42, energy chain, openable along the inner radius
  • Inner height hi: 42mm
  • Inner width Bi: 87,5 - 200mm
  • Bend radii R: 100 - 250mm
  • Pitch: 67mm
from 102.97 INR/m
224 items, thereof ready for shipping:
2 in 24 hours
136 in 2 weeks
To the product page

twisterchain® Series TC56, energy chain, openable along the inner radius
twisterchain® Series TC56, energy chain, openable along the inner radius
  • Inner height hi: 56mm
  • Inner width Bi: 125 - 200mm
  • Bend radii R: 150 - 400mm
  • Pitch: 91mm
from 42,188.78 INR/m
64 items, thereof ready for shipping:
1 in 24 hours
60 in 2 weeks
To the product page

twisterchain® Series 2208, energy chain, openable along the inner and outer radius
twisterchain® Series 2208, energy chain, openable along the inner and outer radius
  • Inner height hi: 28mm
  • Inner width Bi: 52,5 - 112,5mm
  • Bend radii R: 55 - 150mm
  • Pitch: 44mm
from 12,589.75 INR/m
To the product page

twisterchain® Series 2808, energy chain, openable along the inner and outer radius
twisterchain® Series 2808, energy chain, openable along the inner and outer radius
  • Inner height hi: 32mm
  • Inner width Bi: 50 - 150mm
  • Bend radii R: 100 - 250mm
  • Pitch: 56mm
from 15,503.75 INR/m
To the product page

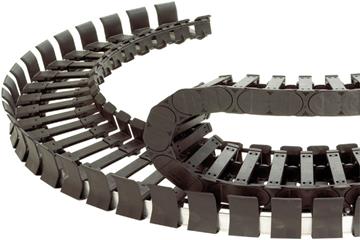

twisterchain® Series 3808, energy chain, openable along the inner and outer radius
twisterchain® Series 3808, energy chain, openable along the inner and outer radius
  • Inner height hi: 42mm
  • Inner width Bi: 50 - 200mm
  • Bend radii R: 100 - 250mm
  • Pitch: 67mm
from 24,591.87 INR/m
To the product page

twisterchain® Series 4008, energy chain, openable along the inner and outer radius
twisterchain® Series 4008, energy chain, openable along the inner and outer radius
  • Inner height hi: 56mm
  • Inner width Bi: 50 - 200mm
  • Bend radii R: 150 - 400mm
  • Pitch: 91mm
from 32,791.85 INR/m
To the product page

twisterband TB12.23.9, "easy" design opening system
twisterband TB12.23.9, "easy" design opening system
Inner height hi: 9mm
Inner widths Bi: 23mm
X1/X2: 40/140
Bend radius ≥ R: 24
Bend radius ≤ R: 35
≤ d1: 7
from 33,770.15 INR/m
20 items, thereof ready for shipping:
20 in 2 weeks
To the product page

twisterband TB20.44.12, "easy" design opening system
twisterband TB20.44.12, "easy" design opening system
Inner height hi: 12mm
Inner widths Bi: 44mm
X1/X2: 50/220
Bend radius ≥ R: 34
Bend radius ≤ R: 57
≤ d1: 9
from 41,254.24 INR/m
21 items, thereof ready for shipping:
21 in 2 weeks
To the product page

twisterband TB20.44.18, opening system closure
twisterband TB20.44.18, opening system closure
Inner height hi: 18mm
Inner widths Bi: 44mm
X1/X2: 50/220
Bend radius ≥ R: 34
Bend radius ≤ R: 57
≤ d1: 14
from 43,052.87 INR/m
21 items, thereof ready for shipping:
21 in 2 weeks
To the product page

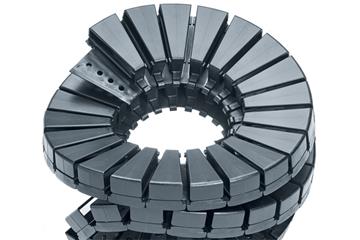

twisterband TB29.27.22, opening system closure
twisterband TB29.27.22, opening system closure
Inner height hi: 22mm
Inner widths Bi: 27mm
X1/X2: 200/320
Bend radius ≥ R: 69
Bend radius ≤ R: 82
≤ d1: 17
from 38,815.28 INR/m
4 items, thereof ready for shipping:
4 in 2 weeks
To the product page

twisterband TB30.75.22, opening system closure
twisterband TB30.75.22, opening system closure
Inner height hi: 22mm
Inner widths Bi: 75mm
X1/X2: 90/330
Bend radius ≥ R: 44
Bend radius ≤ R: 77
≤ d1: 17
from 68,490.60 INR/m
19 items, thereof ready for shipping:
19 in 2 weeks
To the product page

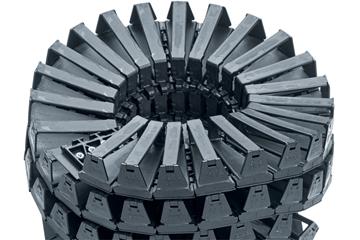

twisterband HD TBHD30.75.22, rotary movements in very small spaces
twisterband HD TBHD30.75.22, rotary movements in very small spaces
Inner height hi: 22mm
Inner widths Bi: 75mm
X1/X2: 90/330
Bend radius ≥ R: 44
Bend radius ≤ R: 77
≤ d1: 17
from 67,344.54 INR/m
12 items, thereof ready for shipping:
12 in 2 weeks
To the product page

twisterband HD TBHD42.135.30, rotary movements in very small spaces
twisterband HD TBHD42.135.30, rotary movements in very small spaces
Inner height hi: 30mm
Inner widths Bi: 135mm
X1/X2: 90/490
Bend radius ≥ R: 56
Bend radius ≤ R: 119
≤ d1: 20
from 1,92,489.88 INR/m
To the product page
