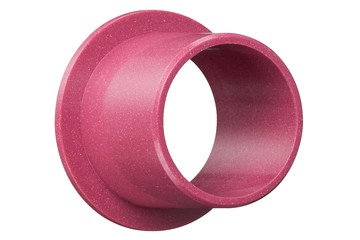

iglidur® C500 | High resistance to media, temperatures up to +250°C, wear-resistant
iglidur® C500 can be used up to +250 °C and is extremely resistant to media – even in cleaning processes using hydrogen peroxide – it is also wear-resistant and has low coefficients of friction. Also suitable for various special designs. The colour represents extreme environmental conditions.

Typical application areas

Automotive
Glass industry
Food industry
Machine tools
Heavy machinery / Plant construction

You will find plenty of additional application areas here Industry solutions



When to use it? When you need an extremely media resistant plain bearing with high flexibility When you need a very wear-resistant and media-resistant bearing

When not to use it? When FDA-compliant high temperature material is needed iglidur® A500, sleeve bearing, mm When you need a media resistant high-temperature bearing with the largest possible range of standard dimensions iglidur® X, sleeve bearing, mm

Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
iglidur® - assembling, gluing, machining
