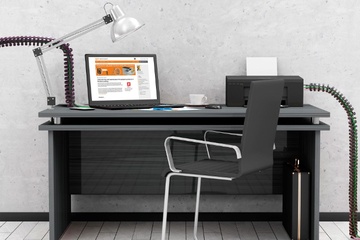

OCR cable guide for height-adjustable desk | round | with magnetic assembly clips
1 of 4
  • Round cable guide
  • 1m = 50 chain links
  • Intermediate connection is possible at any point
  • Can be easily clipped onto the chain
  • Flexible fitting
  • Each chain link can be either a flexible or fixed version
  • Different colours upon request
  • reddot design award winner 2018
  • Accessories: Mouting bracket with integrated magnet under the ‘Matching products’ tab
Piece
mm
Net price:
3,541.88 INR

3,541.88 INR/m

Quantity discount
All prices plus GST and shipping charges
ready for shipping in 24 hours
Add to shopping cart
Put on myigus shopping list

Unsure whether it fits?

Download CAD files
Technical data
Dimensions

Pitch

20.0 mm

Flexible fitting

40 links/m

Fixed version laying

50 links/m

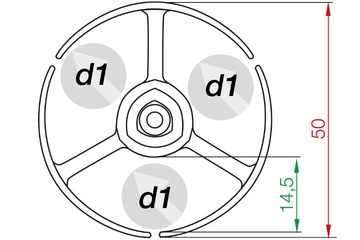

Chain's inner width[Bi]

14.50 mm

Chain's outer width [Ba]

50.00 mm

Max. cable diameter (d1)

13.0 mm

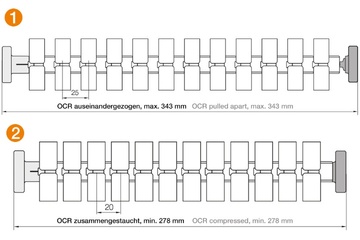

Pitch, flexible laying

25 mm

Pitch, fixed version laying

20 mm

Number of chambers

3
General properties

Office/Furniture

Yes
Thermal properties

Temperature range

-40°C to +80°C
Accessories
Downloads

Other solutions

ZF14 system, cable chain, easy design, push in cables along the inner radius
ZF14 system, cable chain, easy design, push in cables along the inner radius

Inner height hi: 21mm, inner widths Bi: 38m, bend radii R: 28m, pitch: 30.5mm

from 2,727.24 INR/m
easy chain® Series E03, energy chain, to be filled at the outer radius
easy chain® Series E03, energy chain, to be filled at the outer radius

Inner height hi: 5mm, inner widths Bi: 5 - 10mm, bend radii R: 10 - 28mm, pitch: 10mm

from 1,180.63 INR/m
zipper Series 07, energy chain, zip-open along the outer radius
zipper Series 07, energy chain, zip-open along the outer radius

Inner height hi: 10.3mm, inner widths Bi: 6 - 64mm, bend radii R: 18 - 48mm, pitch: 20mm

from 2,656.40 INR/m
